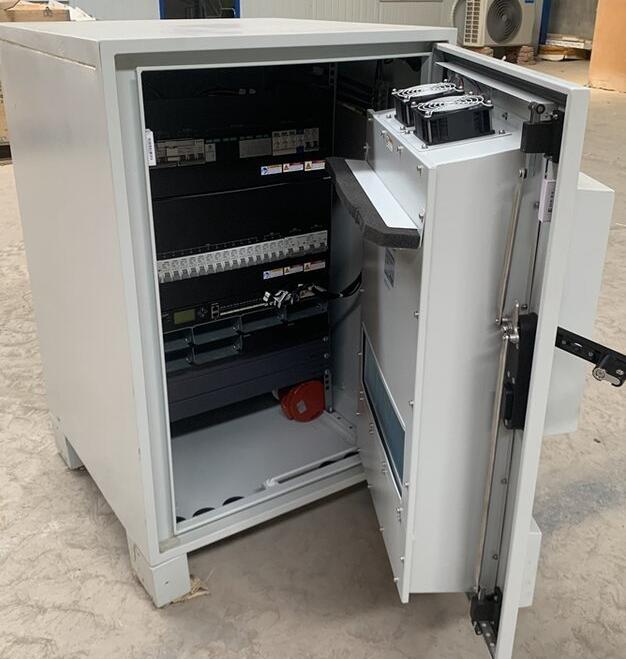

华为TP48300A-HX09D5室外一体化基站通信开关电源柜TP48200A /48V300A
随着近年来5G小基站的实行,迷你型机柜的发展成为华为通信能源产品的发展重中之重,随之原来华为TP48200A系列添加出更多产品,以适应楼顶等称促紧张的站点。
TP48300A-HX09D5华为机柜外形尺寸:宽650mmx深650mmx高1000mm
配置热交换系统,直通风,带油机接口,输入200v-400v 50/60HZ
输出:48v300A
空开配置:交流输入1x63A/3P,防雷40K
输出:10x32A/1P,6x63A/1P 电池空开:4x100A/1P
整流模块:48V50A,配置8个,功率24KW.
监控模块SMU06C 支持RS485/232,FE接口
Tp48300a-hx09d5 Huawei cabinet dimensions: width 650mm x depth650mm x height 1000mm
E with heat exchange system, through air, with oil engineinterface, input 200v-400v, 50 / 60Hz
Output: 48v300a
Air switch configuration: AC input 1x63a / 3P, lightningprotection 40K
Output: 10x32a / 1p, 6x63a / 1p, battery air switch: 4x100a /1P
Rectifier module: 48v50a, maximum configuration 8, power24kw
Monitoring module smu06c supports RS485 / 232, Fe interface
